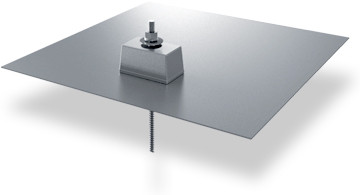

Quick Mount PV QMSC C 1 Clear Composition Flashing

SKU:
SLR-210-0499
SHIPPING:
FREE Shipping! (Estimated Arrival: 5-10 business days)
Unavailable

Description

QuickMount, Flashing, Classic Composition Mounts, 12" x 12", Clear Anodized Finish, Qty. 1, QMSC C 1

The Classic Comp, the industry's best-selling solar panel mount for rooftop solar installations of PV and solar water heating systems, uses our patented QBlock Elevated Water Seal technology to ensure a long, watertight life on composition/asphalt shingle roofs. The Classic Comp was also designed to install fast, with just a single bolt. It is backed by solid engineering and certified for strength and waterproofing by the ICC-ES. The Classic Composition Mount is the most universally code-compliant mount available for composition/asphalt shingle roofs.

Features

  • Stainless steel hardware (included)
  • 10-year warranty; 50-year expected life
  • Works with all leading racks
  • Won't void roof manufacturer's warranty
  • Approved for use by leading roof manufacturers
  • Meets or exceeds roofing industry best practices
  • 2554 lbs. average pullout (Douglas fir); 2203 lbs. average shear
  • ICC-ES certified
  • One bolt installation
  • No shingle cutting
  • 100% IBC compliant
  • Patent numbers 7,762,027 & 7,895,808

Specifications

  •

  • Mechanical Data

    Product Weight 1.160 lbs
    Product Depth 12.000 inches
    Product Height 1.000 inches
    Product Width 12.000 inches
