Description

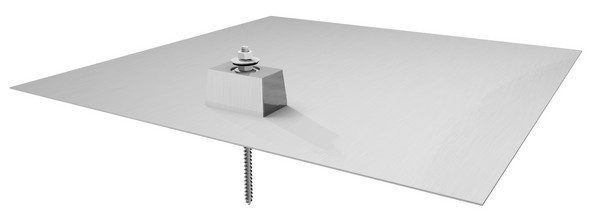

QuickMount, Flashing, Composition Mounts, 12" x 12", 3 1/4" post + 1/2" Q-Base, Mill Finish, Qty. 1, QMNC A 1
The QBase Composition Mount is the strongest and most cost-effective method for installing solar panels during the construction of new composition/asphalt shingle roof for either a new home or a roof replacement. The base-and-post mount is specifically designed to fit into the workflow between the trades to make solar panel installation smooth and efficient.
Features
- Safety - Patents pending. 100% IBC compliant. Cone flashing is spun aluminum with no welds or seams to rust or rot. QBase is the strongest off-the shelf mechanical mount. Allows up to 4 structural attachments when required. Meets or exceeds roofing industry best practices.
- Efficiency - Works with all leading racks. Great mount for solar hot water. Available through leading distributors. 3031 lbs average pullout (Douglas fir); 1972 lbs. average shear. QBase is the strongest off-the shelf mechanical mount. Flashing holds firm against wind-driven rain.
- User Friendly - All hardware included. 10-yr warranty; 50-yr expected life. 3-step process aids collaboration between roofers and PV installers. All exposed hardware is 18-8 stainless steel.
Specifications
-
Manufacturer: Quick Mount PV
Product Line: QMNC Series
Model ID: QMNC A 1 -
Mechanical Data
Technology: Flashing
Dimensions:
12.00 x 2.25 x 12.00 inches
Weight: 1.38 lbs
Finish: Mill
Roof Type: Composition
