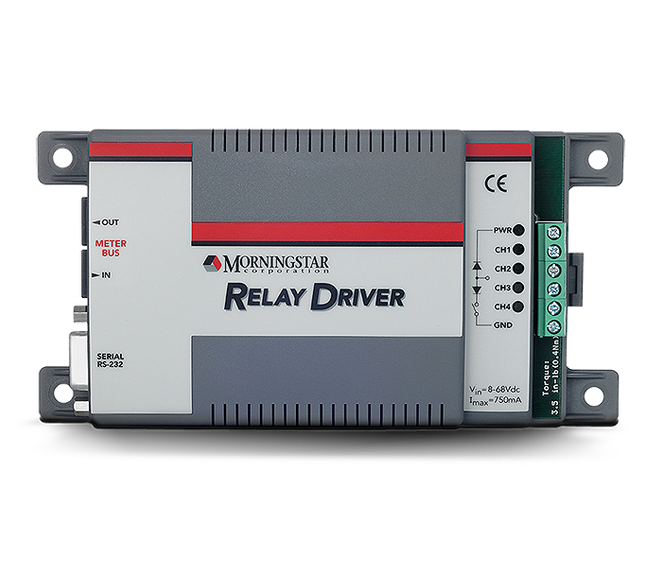

Morningstar RD-1 Relay Driver Logic Module Accessory

Morningstar, Relay Driver, Logic Module Accessory for TriStar or other controller, RD-1

Morningstar’s Relay Driver is a logic module which provides high level system control functions such as high/low voltage alarms, load control and generator start. The product controls fourindependent relay driver outputs by reading digital data inputs from Morningstar’s TriStar controller or by reading battery voltage when used in systems with other controllers.

Connected to a TriStar Controller:  Battery voltage, charge/load current, battery temperature, TriStar heat-sink temperature, PWM duty cycle, PV/load voltage, and all TriStar alarms or faults.

Used in Systems with Other Controllers:  Battery voltage, Relay Driver temperature, input voltages from other sources.

Features

• Safety - Advanced generator control. Industrial design. LED indicators. High and low alarm contacts for industrial applications. Load control including high power applications.


• Efficiency -  Designed for numerous applications such as: High and Low Alarm Contacts for Industrial Applications. Load Control Including High Power Applications (pumps and large motors). Temperature Controlled Settings for Battery Fans or Cooling Vents. Generator Start Functions. Auxiliary AC Backup Charge Control.


• User Friendly - High reliability. Flexibility. Fully programmable. The four channels provide up to four high level system control functions at a lower cost compared to other alarm and generator start packages.
