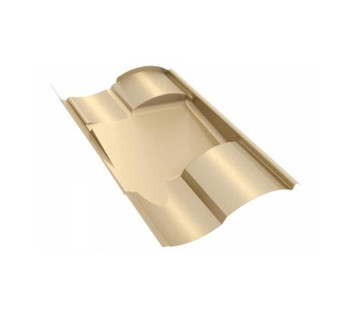

IronRidge KOF-S01-T1 S-Tile Flashing
- SKU:
- SLR-212-0004
- SHIPPING:
- Estimated Arrival: 5-10 business days
Description
IronRidge, Tile Replacement ‘S’ Flashing, Tan, Qty. 1, KOF-S01-T1
Solar installs on tile roofs can be messy and complicated. These jobs often require tile grinding to ensure fit, a struggle to align mounting components, and extensive searches to find the replacements for broken tiles.
Knockout Tile is the solution. The replacement mount rapidly and reliably integrates into the existing roof system. With the strike of a hammer, you create a solid stack of high-performance, form-fitting components which fully encases the waterproof seal. The result? Unprecedented speed and flexibility during installation.
Features
- Form-Fitt Waterproofing - Knockout Tile keeps water down and out with its unique compression seal technology formed by joining the flashing, gasket, and L-foot through a single strike of the hammer.
- Universal Base - Strong, yet light with a compact footprint, Knockout Tile base can be placed anywhere along the rafter in any orientation. The universal base is used with Flat, S, and W flashings.
- Concentric Loading - Minimal offset between the lag bold and the L-foot improves structural performance, and makes possible the use of a single lag. That translates to a 40% higher loading capacity and half the number of roof penetrations.
Specifications
Manufacturer: IronRidge
Product Line: KO Series
Model ID: KOF-S01-T1
Technology: Tile Flashing
Dimensions: 8.00 x 1.50 x 1.00 inches
Weight: 0.88 lbs
Finish: Tan
