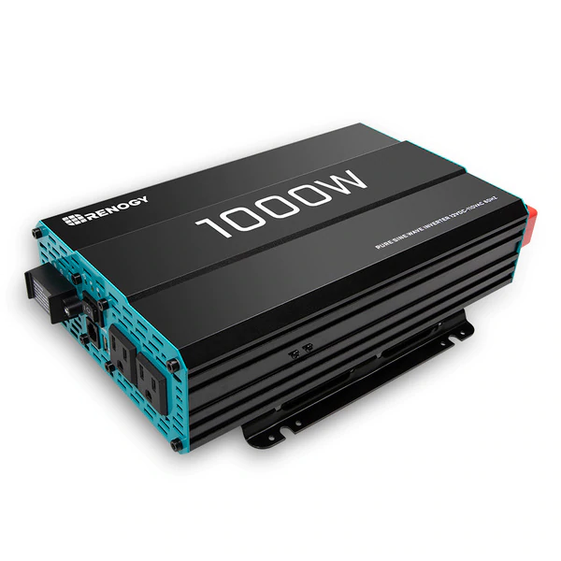

Renogy 1000W 12V Pure Sine Wave Inverter

SKU:
RNG-INVT-1000-12V-P2
UPC:
816360027034
SHIPPING:
Free Shipping! (Estimated delivery 2-3 weeks)
  • Renogy 1000W 12V Pure Sine Wave Inverter
  • Renogy 1000W 12V Pure Sine Wave Inverter
  • Renogy 1000W 12V Pure Sine Wave Inverter
  • Renogy 1000W 12V Pure Sine Wave Inverter
  • Renogy 1000W 12V Pure Sine Wave Inverter
  • Renogy 1000W 12V Pure Sine Wave Inverter
$224.99
In stock and ready to ship

Description

Renogy 1000W 12V Pure Sine Wave Inverter

The Renogy 1000W 12V Pure Sine Wave Inverter is a high-quality and efficient power inverter designed for use in off-grid solar systems. With its pure sine wave output, this inverter provides a stable and reliable source of AC power that can run even sensitive electronic devices, such as laptops or TVs.

This inverter can deliver up to 1000W of continuous power, with a surge power capacity of 2000W, making it suitable for powering medium to high power appliances. It features multiple protection mechanisms such as over-voltage, under-voltage, overload, over-temperature, and short-circuit protection to keep both the inverter and your connected devices safe from damage.

The Renogy 1000W 12V Pure Sine Wave Inverter is designed with a user-friendly interface that includes an LED display that shows the input voltage, output voltage, frequency, and load information in real-time. Additionally, the inverter has an intuitive on/off switch that enables you to turn it on and off conveniently.

This inverter is easy to install thanks to its compact size and lightweight design. You can connect it to your solar system's batteries using the included battery cables and the AC output receptacle to plug in your appliances. It is also compatible with remote control capability, which allows you to monitor and control your system from a distance with the Renogy BT-1 Bluetooth module (sold separately).

Overall, the Renogy 1000W 12V Pure Sine Wave Inverter is a reliable and high-performing power inverter that can help you power your appliances in off-grid solar systems. Its pure sine wave output, robust protection mechanisms, and user-friendly interface make it an excellent choice for anyone looking for a stable source of AC power in their off-grid solar system.

Key Features

Safe
  • Optimized for 12 VDC system voltage.
  • Offers high quality waveform with little harmonic distortion.
  • Overload protection for both DC input and AC output to prevent damage to the components and the unit.
  • Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
  • High-speed ventilation fans to help keep the inverter running at a low temperature.
  • Ground-fault circuit interrupter (GFCI) protection
  • ETL Listed with Built-in 5V/2.1A USB port,and AC Hardwire Port. 4AWG Cables and Wired Remote Included
Quiet
  • No static or humming noises.

Minimum 12V Lithium Battery Bank Sizing

The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.

Battery Bank Qty/ Inverter Size50Ah100Ah170Ah
700W 1 1 1
1000W 2 1 1
2000W 4 2 1
3000W 6 3 2

Packages Include

  • Renogy 1000W 12V Pure Sine Wave Inverter
  • Inverter Cables
  • Inverter Remote Control

Specifications

Renogy 1000W 12V Pure Sine Wave Inverter
Continuous Power: 1000W Surge Power: 2000W
AC Output Voltage Range : 115VAC Output Frequency (Nominal): 60 Hz
Output Waveform: Pure Sine Wave Efficiency: > 90%
Operating Temp: -4°F - 158°F THD: < 3%
No Load Current Draw: < 1A Dimensions: 13.0 x 7.0x 3.0 In
Weight: 6 lbs.
Renogy 4AWG Inverter Cables (A Pair)
AWG: 4 (3 FT)


Warranty Information

Inverters

1-year material and workmanship warranty

Accessories 1-year material warranty
