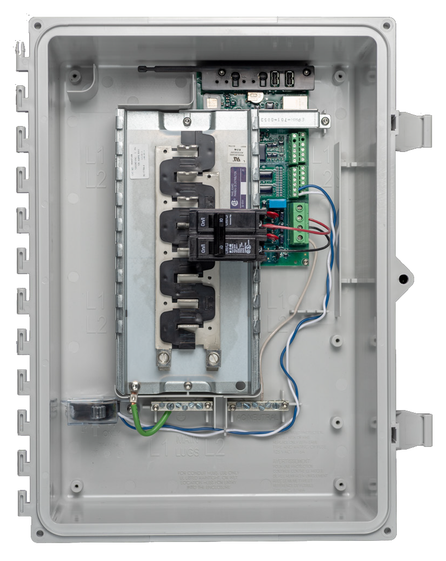

Enphase IQ+ Combiner Box w/ Envoy

Enphase, AC combiner box with IQ Envoy gateway. Max 80A up to 4 AC branch circuits, no breakers, with solar CT, X-IQ-AM1-240-3 M

The Enphase IQ Combiner+ with Enphase IQ Envoy consolidates interconnection equipment into a single enclosure and streamlines PV and storage installations by providing a consistent, pre-wired solution for residential applications. It offers up to four 2-pole input circuits and Eaton BR series busbar assembly.

Features

Smart - Includes IQ Envoy for communication and control. Flexible networking supports Wi-Fi, Ethernet or cellular. Provides production metering and optional consumption monitoring. Supports installation of the Enphase Q Aggregator.
Simple - Eaton BR series panel board interior. Up to four 2-pole branch circuits for 240 VAC plug-in breakers (not included). 80 A total PV or storage branch circuits.
Reliable - Durable NRTL-certified NEMA type 3R enclosure. Five-year warranty. UL listed.

Specifications

GENERAL INFORMATION
Product Line: Envoy Series
Model ID: X-IQ-AM1-240-3 M
Certifications and Safety Ratings:

MECHANICAL DATA
Technology: System Monitoring
Dimensions: 19.40 x 18.30 x 6.30 Inches
Weight: 16.50 lbs
Ambient Temperature Range: -40°C to +46°C
Cooling: Natural Convection, Plus Heat Shield
Enclosure Environmental Rating: Outdoor, NRTL-Certified, NEMA Type 3R, Plolycarbonate Construction
Wire Sizes: 20 A to 50 A Breaker Inputs: 14 to 4 AWG Copper Conductors \| 60 A Breaker Branch Input: 3 to 1/0 AWG Copper Conductors \| Main Lug Combined Output: 10 to 2/0 AWG Copper Conductors \| Neutral and Ground: 14 to 1/0 Copper Conductors - Always Follow Local Code Requirements for Conductor Sizing
Integrated Wi-Fi: 802.11b/g/n
Ethernet: 802.3, Cat5E (or Cat 6) UTP Ethernet Cable - Not Included
Cellular: Optional, CELLMODEM-01 (3G) or CELLMODEM-03 (4G) (Not Included)
Compliance (Combiner): UL 1741; CAN/CSA C22.2 No. 107.1; 47 CFR, Part 15, Class B, ICES 003; Production Metering: ANSI C12.20 Accuracy Class 0.5 (PV Production)
Compliance (IQ Envoy): UL 916; CAN/CSA C22.2 No. 61010-1

ELECTRICAL DATA
IQ Combiner+ X-IQ-AM1-240-2: IQ Combiner+ with Enphase IQ Envoy for Integrated Revenue Grade PV Production Metering (ANSI C12.20+/-0.5%) and Optional Consumption Monitoring (+/-2.5%)
Rating: Continuous Duty
System Voltage: 120/240 VAC, 60 HZ
Eaton BR Series Busbar Rating: 125 Amps
Max. Continuous Current Rating (Output to Grid): 65 Amps
Max. Fuse/Circuit Rating (Output): 90 Amps
Branch Circuits (Solar and/or Storage): Up to Four 2-Pole Eaton BR Series Distributed Generation (DG) Breakers Only (Not Included)
Max. Continuous Current Rating (Input from PV): 64 Amps
Max. Total Branch Circuit Breaker Rating (Input): 80 Amps (Any Combination)
Production Metering CT: 200 Amps Solid Core Pre-Installed and Wired to IQ Envoy
