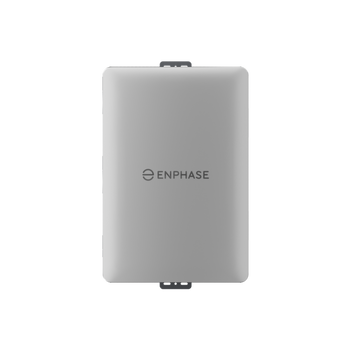

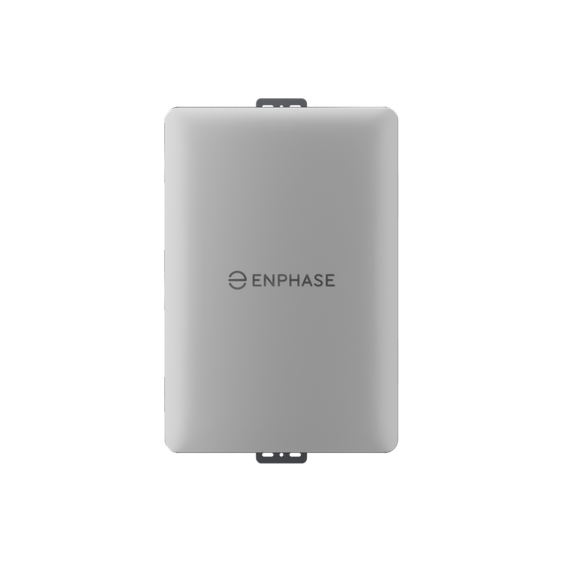

Enphase IQ Combiner 6C
- SKU:
- EN-X-IQ-AM1-240-6C
- SHIPPING:
- Estimated Arrival: 5-10 business days
Description
The IQ Combiner 6C consolidates interconnection equipment into a single enclosure, simplifying the installation of IQ Series Microinverters and IQ Batteries by offering a consistent, pre-wired solution for residential applications.
IQ Combiner 6C is compatible with the IQ Battery 10C and IQ Meter Collar, serving as an all-in-one solution that includes breaker spaces for PV, battery, and an EV charger. It integrates a load controller with breaker spaces for loads and includes pre-installed and pre-wired current transformers (CTs) for PV and battery metering.
The IQ Combiner 6C, together with IQ Microinverters, the IQ Meter Collar, and the IQ Battery 10C, provides a complete, backup-capable Enphase Energy System.
Features
Smart
- Integrated controller and IQ Gateway
- Includes Enphase Mobile Connect (CELLMODEM-07-NA)
- Supports flexible networking: Wi-Fi, Ethernet, or Cellular
- Provides production and storage metering (revenue-grade)
- Provides consumption/load/third-party PV and EV charger monitoring
Easy to install
- Pre-installed UL 489 certified device for Rapid Shutdown
- Single stud mountable, with two screws
- Supports multiple conduit entry options such as top right, top left, bottom left, bottom right, bottom rear, and bottom
- Supports up to five PV, two battery, and one EV charger branch-circuit breakers
- Bluetooth-based Wi-Fi provisioning for easy Wi-Fi setup
- Built-in load controller with space for a double-pole breaker enables easy monitoring and control of heavy loads
Reliable
- Durable NRTL-certified NEMA type 3R enclosure
- UL-certified for safety and performance
- Field-serviceable IQ Gateway and controller boards
Specifications
Manufacturer: Enphase Energy
Product Line: Inverter
Model ID: X-IQ-AM1-240-6C- System voltage: 120/240 VAC, 60 Hz
- Internal DER busbar rating 200 A
- Internal PV busbar rating 100 A
- Maximum continuous DERs current rating 160 A
- Maximum continuous PVs current rating 80 A*
- Maximum backfeed overcurrent protection device (at the point of connection from the grid) 125 A
- Maximum input short circuit current 10 kA
- Maximum load control overcurrent protection device 80 A*
- Maximum overcurrent protection device for PV aggregation 100 A*
- Maximum overcurrent protection device rating for external PV combiner unit 100 A*
Breaker spaces:
-
- 4 x 20 A or 3 x 20 A + 1 x 20-20 A IQ Microinverter breakers
- 2 x 80 A IQ Battery breakers
- 1 x 60 A IQ Charger breaker
- 1x 80 A Controlled loads breaker
Dimensions
| Depth | 8.66 in |
|---|---|
| Width | 18.11 in |
| Height | 26.77 in |
| Weight | 18 kg (39.68 lbs) |
*Refer to the datasheet for details/restrictions
- IQ Battery 10C
- IQ Meter Collar
