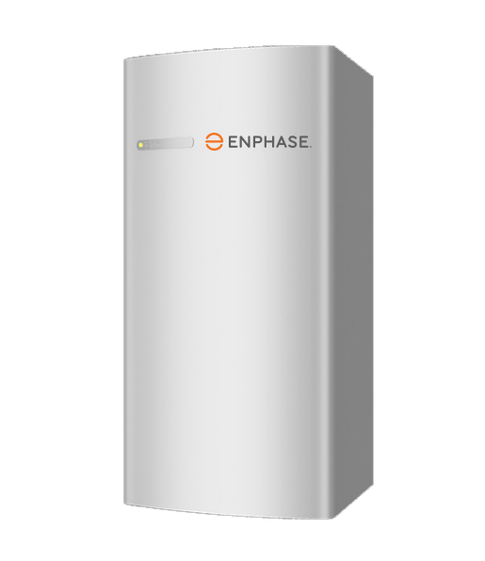

Enphase 3.36kWh Lithium Iron Battery

Enphase, Encharge 3.36kWh Lithium iron phosphate (LFP) Battery, with 4 integrated IQ8X-BATT inverters, NEMA 3R, ENCHARGE-3T-1P-NA

The Enphase Encharge 3™ battery is reliable, smart, simple, and safe. It provides the lowest lifetime energy costs with backup capability for both new and retrofit solar customers. As an installer, you can quickly design the right system size to meet the needs of the homeowner.

Features

Reliable - Proven high-reliability IQ series microinverters. Ten-year limited warranty. Extensive testing. Passive cooling (no moving parts/fans).
Smart - Utility TOU optimization. Self consumption. Remote upgrade. Mobile app-based monitoring. Grid-forming capability for backup operation.
Simple - Fully integrated AC battery system. Quick and easy plug-and-play installation. Interconnects with standard household AC wiring.

Specifications

GENERAL INFORMATION
Product Line: Ensemble
Model ID: ENCHARGE-3T-1P-NA
Certifications and Safety Ratings:

MECHANICAL DATA
Technology:Lithium Iron Phosphate (LFP) Battery
Dimensions: 430 x 775 x 188 mm (16.9 x 30.5 x 7.4 in)
Weight:97.4 lbs
Weight: One individual 40.5 kg (89.3 lbs) base unit plus 8.3 kg (18.3 lbs) cover and mounting bracket; total 48.8 kg (107.6 lbs)
Enclosure:Outdoor - NEMA 3R
Cooling:Natural Convection - No Fans
Mounting:Wall Mount
Compatibility:Grid-Tied PV Systems, Enphase IQ Series Micros, Enphase Enpower, and Enphase IQ Envoy for Backup Operation
Communication:Wireless 2.4 GHz and 915 MHz
Services:Back-up, Self-Consumption, TOU, Demand Charge, NEM Integrity
Monitoring:Enlighten Manager and MyEnlighten Monitoring Options; API Integration

ELECTRICAL DATA
Rated (Continuous) Output Power:1.28 kVA
Peak Output Power:1.92 kVa (10 Seconds)
Nominal Voltage / Range:240/211 - 264 VAC
Nominal Frequency / Range:60/57 - 63 Hz
Rated Output Current: 5.3 Amps
Power Factor (Adjustable):0.85 Leading ... 0.85 Lagging
Max. Units per 20 A Brach Circuit: Three Units (Single Phase)
Round Trip Efficiency: 89%

Battery
Usable Capacity:3.36 kWh
Max. DC Voltage:73.5 Volts
Ambient Operating Temperature:-15º C to 55º C (5º F to 131º F) Non-Condensing
Optimum Operating Temperature:0º C to 30º C (32º F to 86º F)
Chemistry:Lithium Iron Phosphate (LFP)
