Description

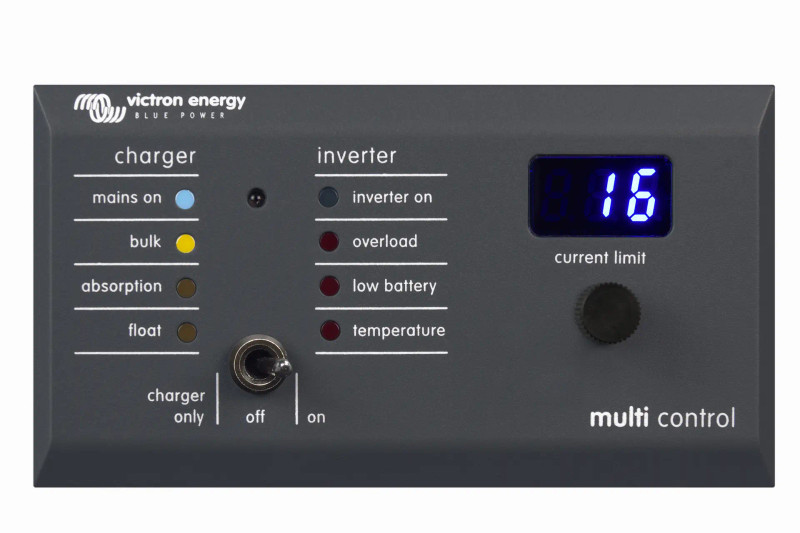

The Victron Digital Multi Control Panel GX is a remote control interface for Victron MultiPlus and Quattro inverter/chargers. Mounted conveniently in the helm, dashboard, or control panel, it enables you to monitor AC input current settings, activate PowerControl & PowerAssist, and switch between On, Off, and Charger‑Only modes without needing direct access to the inverter.
Features
- Remote control & monitoring of MultiPlus/Quattro inverter/chargers
- PowerControl & PowerAssist support for dual AC sources
- Control knob for AC input current limiter (up to 200 A)
- On/Off/Charger‑Only switch for mode selection
- Bright LEDs with auto-dimming for system status
- Compatible with VE.Bus systems, single, parallel, or 3‑phase
- Front or rear recess panel mounting in a 65 × 120 mm cut‑out
Specifications
-
Manufacturer: Victron Energy
Product Line: Display & Panels
Model ID: DMC000200010R (GX version) -
Panel Size (cut-out): 65 × 120 mm; Depth behind panel: ≥ 20 mm :contentReference[oaicite:1]{index=1}
-
Material: Plastic faceplate, no visible mounting holes :contentReference[oaicite:2]{index=2}
