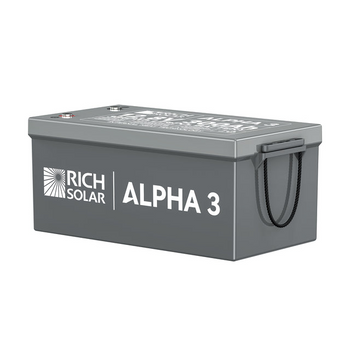

ALPHA 3 | 12V 300Ah LiFePO4 Battery | 12V Lithium Battery for RVs, Cabins, Off-Grid | 5,000 Lifetime Cycles | Internal Heat Techlogy

SKU:

RS-B123S

Description
Warranty Information

Description

Features

Internal heat technology
Longevity of service
Real-Time Monitoring: Monitors battery status on mobile devices in real time via the built-in Bluetooth module
IP65 waterproof and dustproof
Flame retardant rating: UL94 V-0 (Plastic shell)
Green energy without metal contaminants
Extremely high number of charge/discharge cycles
Lightweight, small size
Extreme Performance safety tested to guarantee safety under extreme conditions—no fire, explosion, or leakage.
Sophisticated Battery Management System (BMS)

Specifications

Manufacturer: Rich Solar
Product Line: Battery
Model ID: RS-B123S

BATTERY

Cell Type: LiFePO4 Battery

Nominal Voltage: 12.8V

Nominal Capacity: 300Ah

Nominal Energy: 3840Wh

Cycle Life: 5000 cycles

Maximum Expansion (Parallel & Series): 4P4S

BMS

BMS: 300A

Maximum Charging Current: 300A

Maximum Continuous Discharge Current: 300A

CHARGE

Charge Method: CC/CV

Charge Voltage: 14.4V ± 0.2V

Recommended Charge Current: 150A

TEMPERATURE

Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)

Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)

Storage Temperature: 50℉ to 95℉ (10℃ to 35℃)

SELF-HEATING

External Power Draw: 100W

Internal Heating Starts: < 41℉ (5℃)

Internal Heating Stops: > 50℉ (10℃)

OTHERS

Net Battery Weight: 71.7lb

Size(L*W*H): 20.47x10.55x8.66in

Housing Material: ABS (Flame Retardant Plastic)

Protection Class: IP65

Warranty: 5 Years

INFO & GUIDE

Spec Sheet

Manual
