Rich Solar

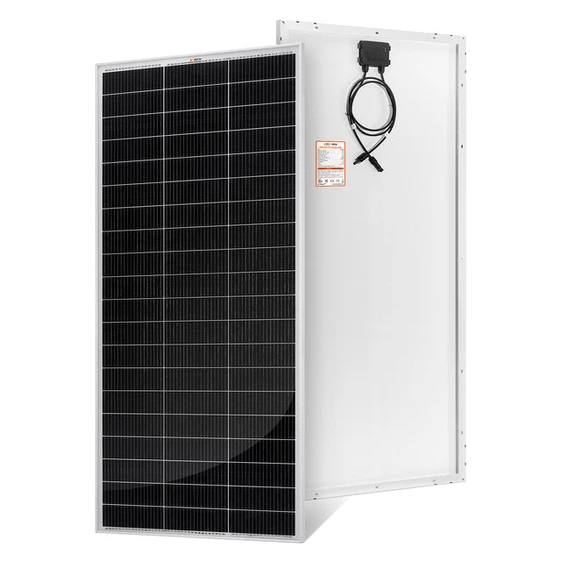

Rich Solar MEGA 200 PRO | 200 Watt 24 Volt Solar Panel | Premium 24V Off-Grid Solar Panel for RVs, Trailers, Cabins | 25-Year Output Warranty | UL Certified
- SKU:
- RS-M200P
- SHIPPING:
- Free Shipping! (Estimated Arrival: 5-10 business days)
Description
Industry Standard
Generates 5.51A of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
High Performance
Excellent low-light performance even on early mornings, evenings, and cloudy days.
Rugged Durability
Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame.
Simple Installation
Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
Warranty
25-year limited warranty for power output; 10-year workmanship warranty.
FEATURES
- 18 busbar solar cell configuration
- Lightweight anodized aluminum frame
- High transmission, AR (anti-reflective) coated tempered glass
- Industry standard quick connect cables (Solar Connectors) work in series or in parallel
- Excellent low light performance on cloudy days, mornings and evenings
- Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
- Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)
Specifications
Manufacturer: Rich Solar
Product Line: Solar Panel
Model ID: RS-M200P
200W 24V SOLAR PANEL
- Maximum Power(Pmax) 200W
- Maximum Power Voltage(Vmp) 36.3V
- Maximum Power Current(Imp) 5.51A
- Open Circuit Voltage(Voc) 43.5V
- Short Circuit Current(Isc) 5.93A
- Maximum System Voltage 1000 VDC
- Maximum Series Fuse Rating 15A
- Temperature Range -40 ~ +185°F
- Weight 24.0 lb
- Dimensions 58.7 x 26.8 x 1.2 in
INFO & GUIDE
Warranty Information
Rigid Solar Panels
25-Year Power Output Warranty
10-Year Workmanship Warranty
Portable Solar Panels
25-Year Power Output Warranty
5-Year Workmanship Warranty
2-Year Warranty for Controller on Kits
Flexible Panels
1-Year Warranty
Batteries
ALPHA LITE Series
*5-Year Warranty
ALPHA Series
*5-Year Warranty
ALPHA PRO Series
*10-Year Warranty
LiFePO4 Battery Bank (Black)
*5-Year Warranty
Inverters
Grid-Tie Inverters
10-Year Warranty
Pure Sine Wave Inverters
2-Year Warranty
Hybrid Inverters
3-Year Warranty
Controllers
MPPT Controllers
2-Year Warranty
PWM Controllers
1-Year Warranty
