Description

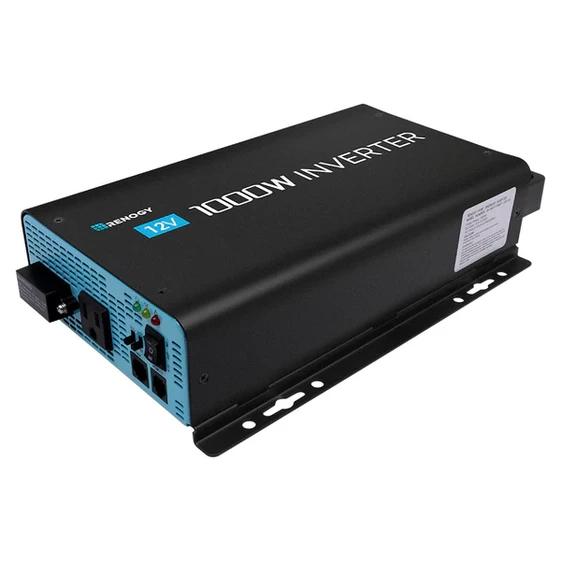

Renogy 1000W 12V Pure Sine Wave Inverter with Power Saving Mode (New Edition)

The new Renogy 1000W Pure Sine Wave Power Inverter transforms the DC power stored in batteries into standard household AC power for consumer electronic needs. As a pure sine wave inverter, it is capable of producing cleaner, smoother, quieter, and more reliable electricity to operate fans, lights, and other electronics without interference. This unit features an ECO Power Saving Mode which reduces the power consumption form the battery when no loads are detected. Pair this 12V solar accessory with any off-grid system, including vans, to run your everyday electronics.

Key Features

Optimized for 12 VDC system voltage.
Offers high quality waveform with little harmonic distortion.
LED indicators for under-voltage and over-voltage protection, over-temperature protection, overload protection, and short circuit indication.
High-speed ventilation fans to help keep the inverter running at a low temperature.
ECO Power Save Mode to conserve power from the battery.
Overload protection for both DC input and AC output to prevent damage to the components and the unit.
4AWG Cables and Wired Remote included.
Built-in RS485 data communication port.

Solar Panel

Surge ratings of 2000W
DC and AC inputs
Power Saving Mode
4 Stage Battery Charger
8 Pre-Set Battery Voltages
Automatic Generator Start Option

Minimum 12V Lithium Battery Bank Sizing

The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.

Battery Bank Qty/ Inverter Size	50Ah	100Ah	170Ah
700W	1	1	1
1000W	2	1	1
2000W	4	2	1
3000W	6	3	2

Packages Include

1000W 12V Pure Sine Wave Inverter
Inverter Cables
Inverter Remote Control

Specifications

Renogy 1000W 12V Pure Sine Wave Inverter
Continuous Power: 1000W	Surge Power: 2000W
AC Output Voltage Range : 110VAC ± 10%	Output Frequency (Nominal): 50/60 Hz ± 0.1%
Output Waveform: Pure Sine Wave	Efficiency: > 90%
THD: < 3% Linear Load	THD: < 5% Non-linear Load
No Load Current Draw: < 1.0A	Dimensions: 13.4 x 7.6 x 2.8 In
Weight: 6.42 lbs.	Operating Temperature: -4°F to - 158°F
