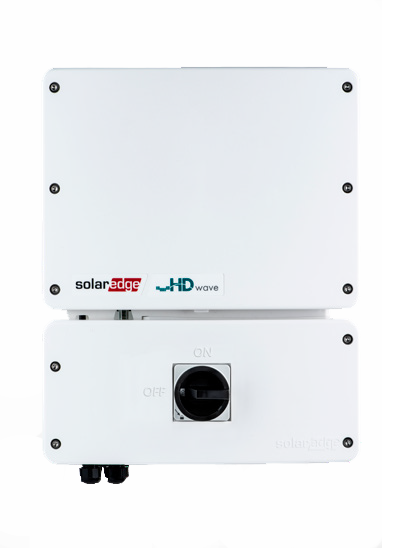

SolarEdge Energy Hub Inverter with Prism Technology

The performance of HD-Wave meets StorEdge in a next generation home backup solution for higher efficiency and greater flexibility.

The superior performance of HD-Wave and StorEdge come together to offer advanced home storage. When installed with a battery and backup interface, the Energy Hub DC-coupled solution provides high energy yield, allowing larger installs.

Energy Hub inverter brings together the capabilities of all our existing residential inverters in a single solution. Not only is it DC-coupled battery-ready, it is preconfigured to connect to our Level 2 Smart EV Charger for driving on up to 100% sunshine. And with a built-in consumption meter, it becomes easier to track usage and reduce bills. It is future-ready, enabling an ever-growing range of products to be added on to meet evolving household needs.

Key Benefits:

• 200% DC oversizing allows for larger systems: energy that would normally be lost in an AC-coupled solution can now be redirected to a battery for optimizing self-consumption
• 90.8% overall system efficiency
• More loads can be backed up to 200A - full home or partial
• Power stack batteries for increased production and storage to keep the entire home covered1
• Generator compatible

Specifications

GENERAL INFORMATION

Manufacturer: SolarEdge

Product Line: EEnergy Hub with Prism Technology

Model ID: SE3800H-USS3BBC14

Certifications and Safety Ratings:

MECHANICAL DATA

Technology: Single Phase String Inverter w/ RGM

Dimensions:17.7 x 14.6 x 6.8 inches

Weight: 26 lbs

Consumption Metering: Built-In

Battery Storage: With Backup Interface Up to 200A; Up to 3 Inverters, 15kW Backup, and 60kWh Backup Capacity

EV Charging: Direct Connection to Smart EV Charger

Noise: < 25dBA

Enphase Mobile Connect CELLMODEM-01: Plug and Play Industrial Grade Cellular Modem with Five-Year Data Plan for Residential Systems up to 12kW. (Available in the US, Puerto Rico, and the US Virgin Islands.

Cooling: Natural Convection

Protection Rating: NEMA 4X

Supported Communication Interfaces: RS485, Ethernet, Wi-Fi (Operational), Cellular

Revenue Grade Metering: Built-In

Inverter Commissioning: With the SetApp Mobile App via WiFi

ELECTRICAL DATA

Output - AC on Grid

Rated AC Power: 3800W

AC Power Output: 3800W

AC Output Voltage: 211-264Vac

Frequency Range: Min: 59.3Hz; Nom: 60Hz; and Max: 60.5Hz

Maximum Continuous Output Current: 16 Amps

Utility Monitoring, Islanding Protection, County Configurable Thresholds: Yes

Charge Battery from AC (if Allowed): Yes

Typical Nighttime Power Consumption: < 2.5W

Output - AC Backup

Rated AC Power in Backup Operation: 3050W

Peak AC Power (< 10 sec) in Backup Operation: 3400W

AC (L-N) Output Voltage Range in Backup: 105-132Vac

AC Frequency Range in Backup: Min: 55Hz; Nom: 60Hz; and Max: 65Hz

Maximum Continuous Output Current in Backup: 12.7 Amps

Peak AC Current (< 10 sec) in Backup Operation: 14.2 Amps

Output - Smart EV Charger AC

Rated AC Power: 9600W

AC Output Voltage Range: 211-264Vac

AC Frequency Range: Min: 59.3Hz; Nom: 60Hz, and Max: 60.5Hz

Max. Continuous Output Current @240V (Grid, PV and Battery): 40Aac

Input - DC (PV and Battery)

Transformer-less, Ungrounded: Yes

Max. Input Voltage: 480Vdc

Nom DC Input Voltage: 350Vdc

Reverse-Polarity Protection: Yes

Ground-Fault Isolation Detection: 600kΩ Sensitivity

Input - DC (PV)

Max. DC Power: 7600W

Max. Input Current: 10.5Adc

Max. Input Short Circuit Current: 45Adc

Max. Inverter Efficiency: 99.2%

2-Pole Disconnection: Yes

Input - DC (Battery)

Supported Battery Types: LG Chem RESU10H

Number of Batteries per Inverter: 1 or 2

Max. Battery Capacity per Inverter: 19.6kWh

Continuous Power per Inverter: 5000W

Peak Power: 6900Adc

Max. Input Current @240V: 18Adc

2-Pole Disconnection: Yes
