Description

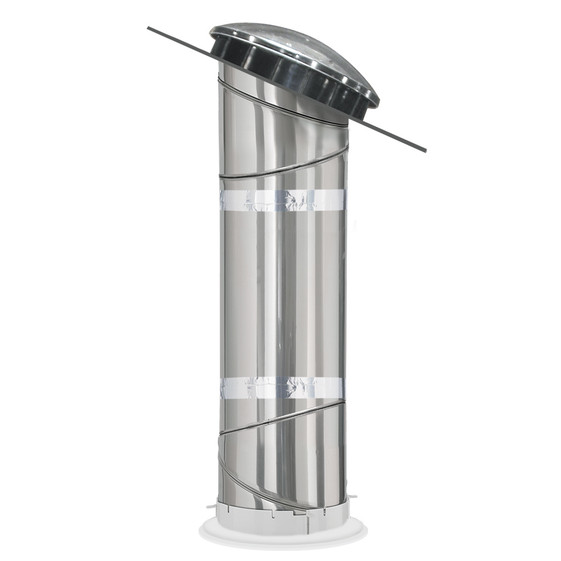

TSR SUN TUNNEL SKYLIGHT FEATURES
Optically Engineered

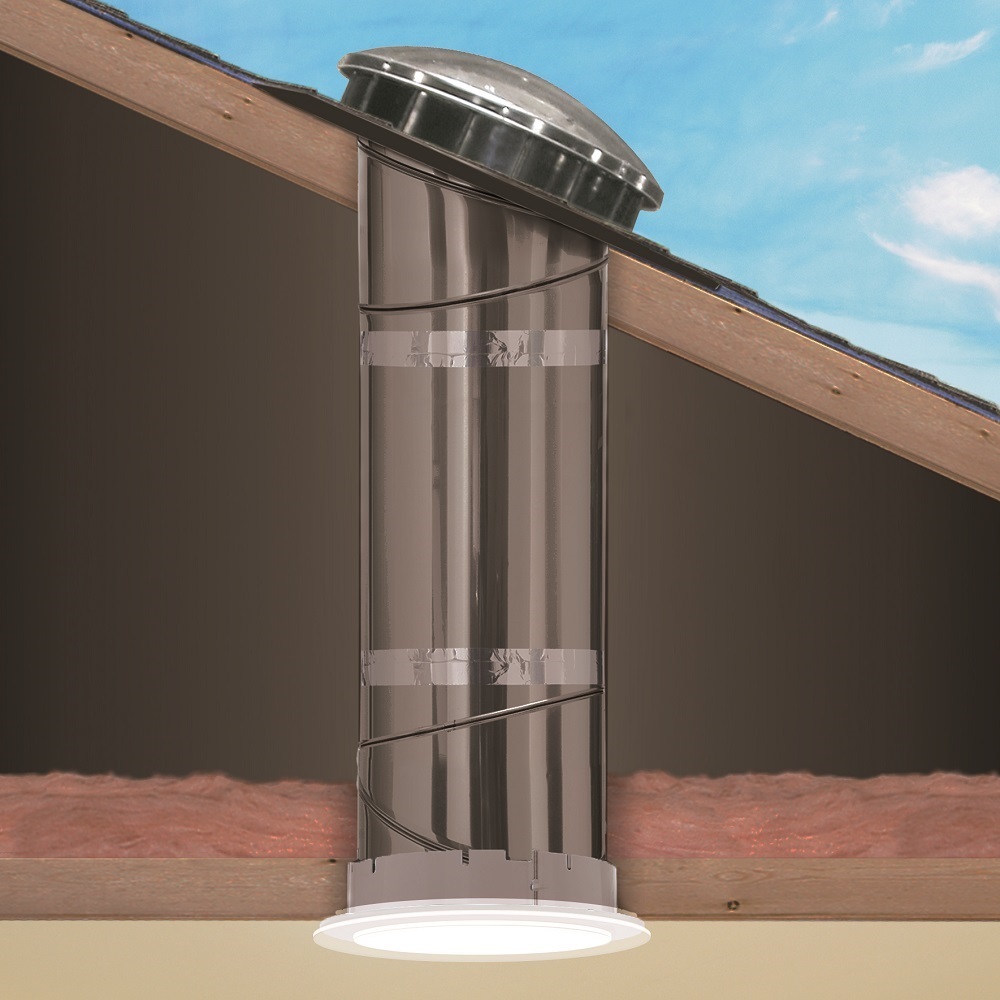

Designed to capture light through a dome on the roof and send it through a 99% reflective rigid tube with a 20-year tube warranty.
Complete Kit
Includes dome, flashing, ceiling ring, diffuser, two 45-degree 12" elbows, & one 24" straight section.
Flexi Loc™ System
A tube assembly system that doesn't require screws, cutting installation time in half.
Specifications
TSR SUN TUNNEL SKYLIGHTS
DETAILS
| Dome/Lens Type | Acrylic | Installation Type | Self-flashed |
| Tube Type | Rigid | Required roof pitch | 14-60 degrees |
| Tube Diameter | 10 in | Exterior Finish | Gray |
| Tube Length Included | 48 in | Flashing Material | Metal & Polypropylene Ring |
| Min. Tube Length | 12 in | Lighting Area | 200 sq ft |
| Max. Tube Length | 20 ft |
NFRC RATINGS
| U-Factor | 0.42 | ||
| Solar Heat Gain SHGC | 0.40 | ||
| Visible Transmittance VT | 0.41 | ||
| ENERGY STAR 7.0 | Northern | ||
| Colorado's Water & Efficiency Standards | Compliant |
WARRANTY / CERTIFICATIONS
| Product Warranty | 10-year limited | ||
| Tube Warranty | 20-year limited | ||
| Florida Product Approval | FL6393.3 | ||
| High Velocity Hurricane Zone HVHZ | No | ||
| IAPMO | UES #0199 | ||
| WDMA Hallmark Certified | Yes | ||
| Cali Prop 65 Warning | Yes |
California residents: This product can expose you to Nickel which is known by the State of California to cause cancer, birth defects or other reproductive harm. Click to learn more
Colorado residents: Skylights with U-Factor > 0.50 are intended solely for non-residential applications. Click to learn more
