VELUX TGR 022 Low Profile Dome Rigid Tube Commercial Sun Tunnel Skylight
- SKU:
- TGR 022 S0000A
- UPC:
- 5702329637596
- SHIPPING:
- Free Shipping (Arrives in Approx 3-5 Business Days)
Questions? We’re Here to Help.
Get timely, human assistance from people with real-world experience. No question is too large or too small - reach out to us for guidance.
We're open M-F, 6am-4pm PST. After-hours messages get a response within 1 business day.
Description
TGR 022 SUN TUNNEL SKYLIGHT FEATURES
Optically Engineered
Designed to capture light through a dome on the roof and send it through a 99% reflective rigid tube with a 20-year tube warranty.
Complete kit

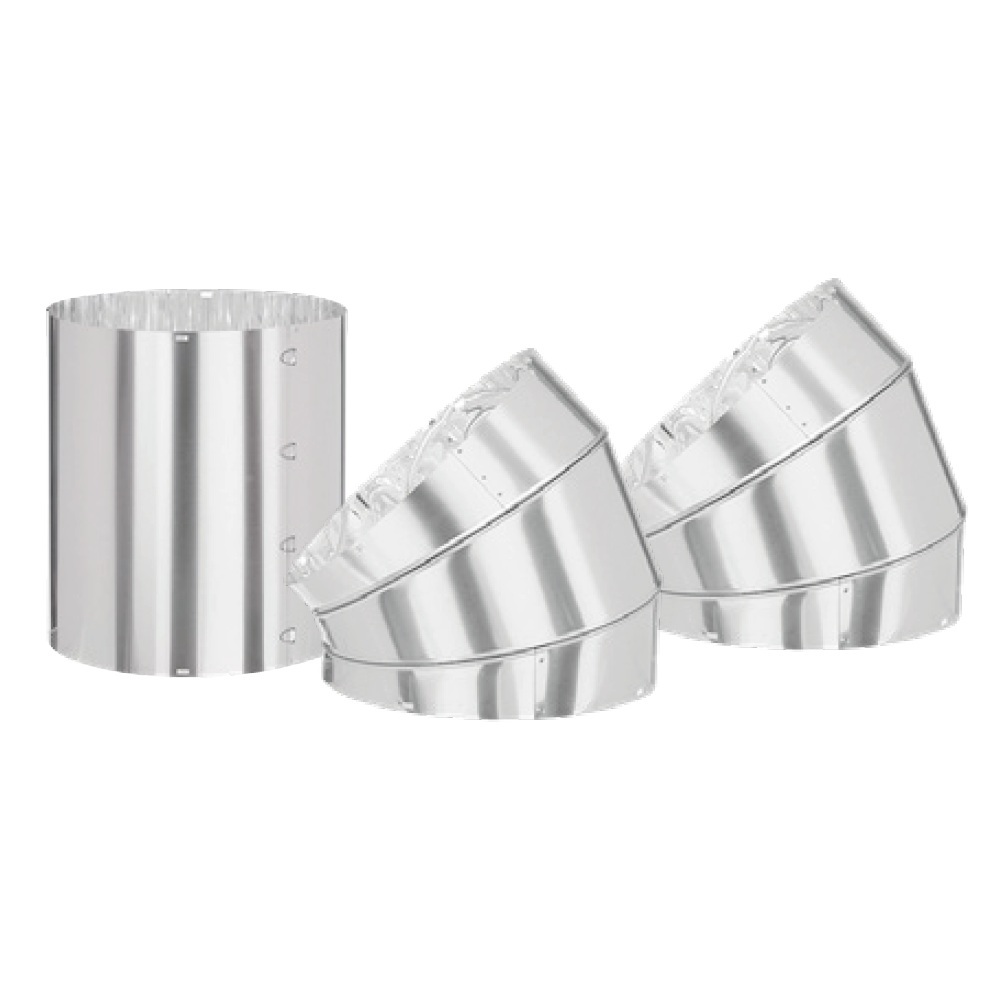

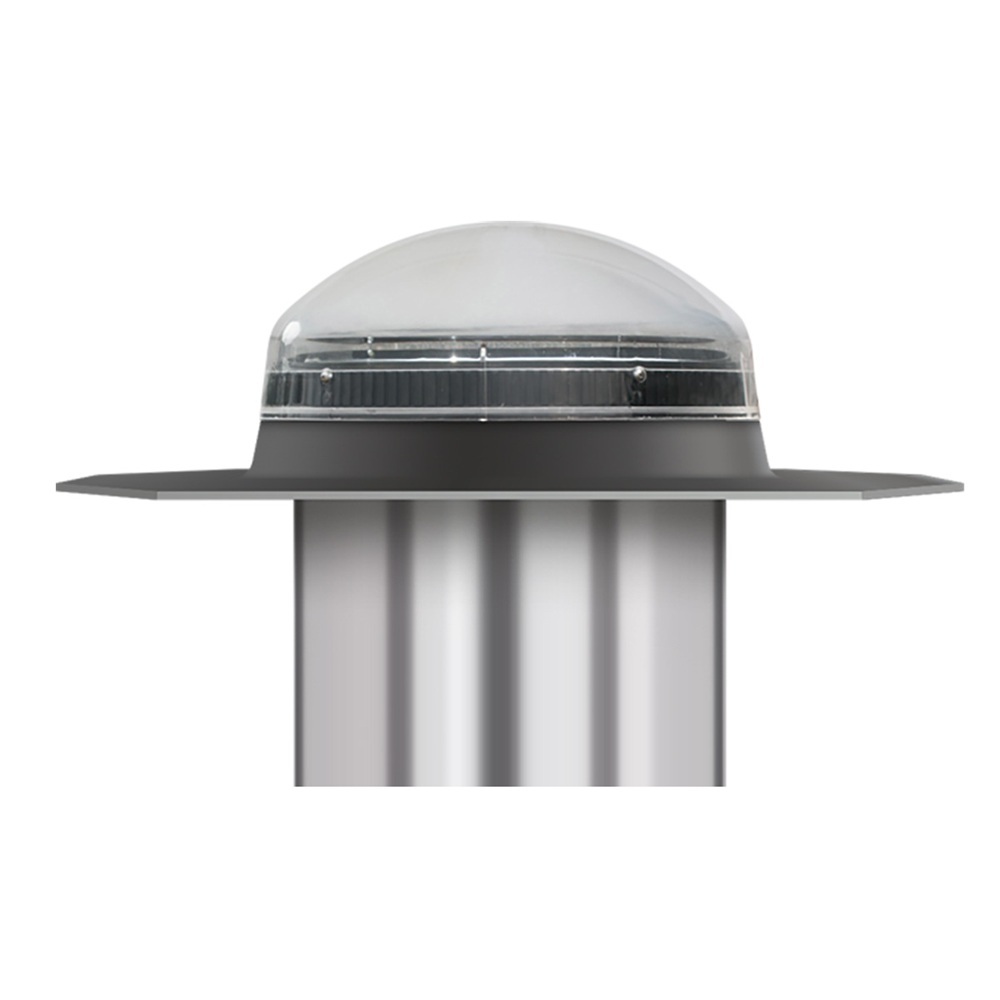

Includes TGC 022 pan-flashed dome, THC 022 hard/drywall ceiling diffuser, TTK 022 elbows and straight tube section.
Flexi Loc™ System
A tube assembly system that doesn't require screws, cutting installation time in half.
Specifications
TGR 022 SUN TUNNEL SKYLIGHTS
DETAILS
| Dome/Lens Type | Acrylic or Polycarbonate | Installation Type | Self-flashed |
| Tube Type | Rigid | Required roof pitch | 0-60 degrees |
| Tube Diameter | 22 in | Exterior Finish | Gray |
| Tube Length Included | 48 in | Flashing Material | Metal |
| Min. Tube Length | 12 in | Lighting Area | 325 sq ft |
| Max. Tube Length | 40 ft |
NFRC RATINGS
| Model | Standard | With Energy Kit | |
| U-Factor | 1.31 | 0.39 | |
| Solar Heat Gain SHGC | 0.35 | 0.27 | |
| Visible Transmittance VT | 0.55 | 0.46 | |
| ENERGY STAR 7.0 | Not Qualified | Northern | |
| Colorado's Water & Efficiency Standards | Non-compliant | Compliant |
WARRANTY / CERTIFICATIONS
| Product Warranty | 10-year limited | ||
| Tube Warranty | 20-year limited | ||
| Florida Product Approval | FL6393.9-10 | ||
| High Velocity Hurricane Zone HVHZ | No | ||
| IAPMO | UES #0199 | ||
| WDMA Hallmark Certified | Yes | ||
| Cali Prop 65 Warning | Yes |
California residents: This product can expose you to Nickel which is known by the State of California to cause cancer, birth defects or other reproductive harm. Click to learn more
Colorado residents: Skylights with U-Factor > 0.50 are intended solely for non-residential applications. Click to learn more
