Velux

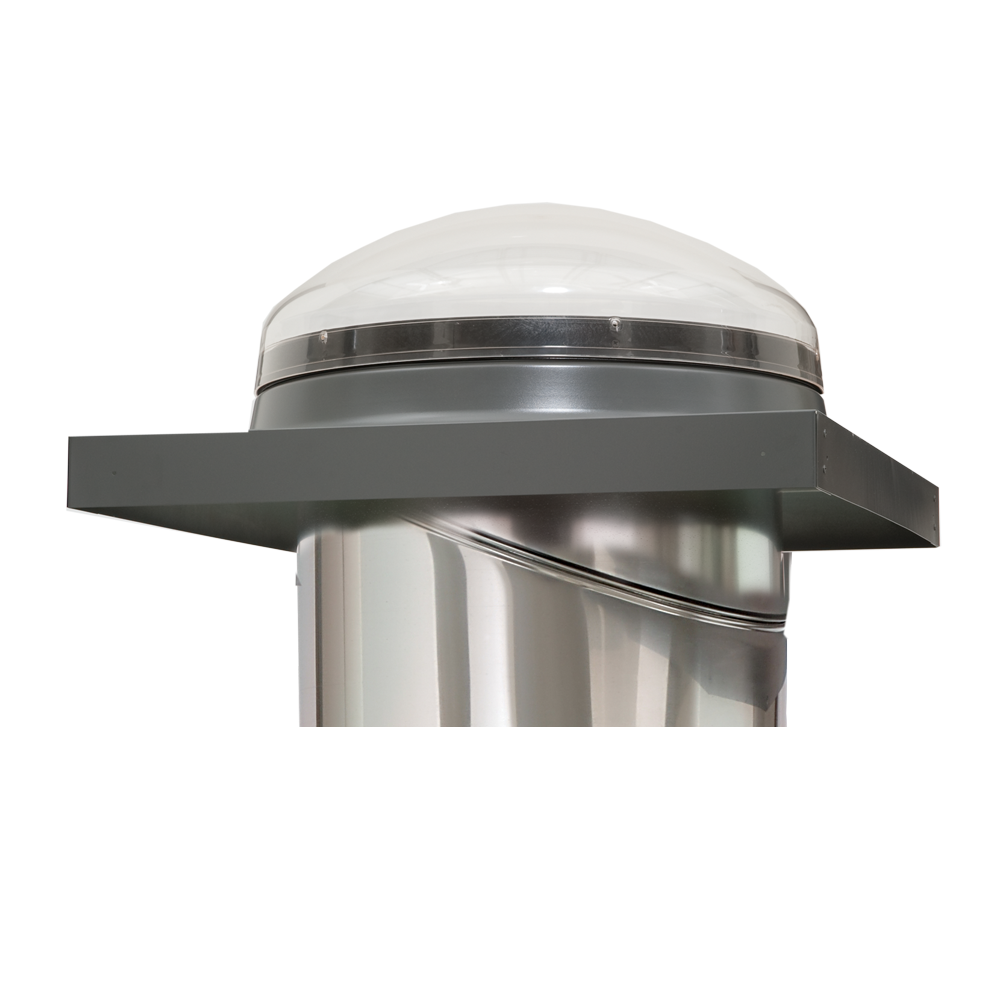

VELUX TCR 014 Curb Mount Dome Rigid Tube Sun Tunnel Skylight

SKU:
TCR 014 0000US
UPC:
5702326664878
SHIPPING:
Free Shipping (Arrives in Approx 3-5 Business Days)

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 3 - 9 and get 5% off
  • VELUX TCR 014 Curb Mount Dome Sun Tunnel Skylight with Rigid Tube
  • VELUX TCR 014 Curb Mount Dome Sun Tunnel Skylight with Rigid Tube
  • VELUX TCR 014 Curb Mount Dome Sun Tunnel Skylight with Rigid Tube
  • VELUX Sun Tunnel Skylight
  • VELUX Sun Tunnel Skylight
  • VELUX Sun Tunnel Skylight
  • VELUX Sun Tunnel Skylight
  • VELUX Flexi Loc tube assembly system
  • 14 inch diameter tube
  • 0-60 degrees pitch required
$504.00
  • VELUX ECW 014 tile roof flashing for TCR Sun Tunnel Skylight
Support

Questions? We’re Here to Help.

Get timely, human assistance from people with real-world experience. No question is too large or too small - reach out to us for guidance.

We're open M-F, 6am-4pm PST. After-hours messages get a response within 1 business day.

Description

TCR SUN TUNNEL SKYLIGHT FEATURES

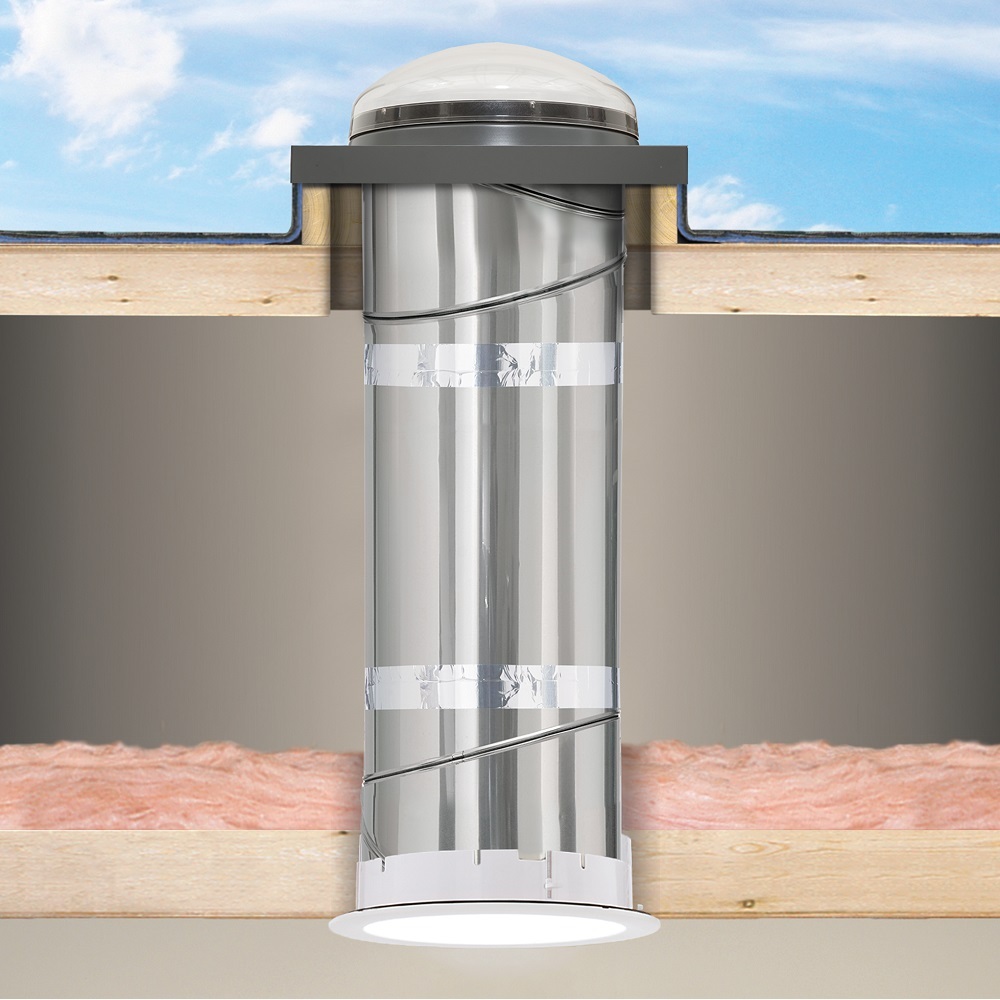

VELUX TCR Sun Tunnel Skylight Optically Engineered

Designed to capture light through a dome on the roof and send it through a 99% reflective rigid tube with a 20-year tube warranty.

Curb Mount Design

TCR skylight sits on a site-built curb (not included) so it can be installed on flat or sloped roofs. Tile roof flashing available, sold separately.

Flexi Loc Flexi Loc System

A tube assembly system that doesn't require screws, cutting installation time in half.

Specifications

TCR 014 SUN TUNNEL SKYLIGHTS
DETAILS
Dome/Lens Type Acrylic or Polycarbonate Installation Type Curb mount
Tube Type Rigid Required roof pitch 0-60 degrees
Tube Diameter 14 in Exterior Finish Gray
Tube Length Included 48 in Flashing Material Metal
Min. Tube Length 12 in Lighting Area 325 sq ft
Max. Tube Length 30 ft

NFRC RATINGS
Model Standard   With Energy Kit
U-Factor 0.50   0.38
Solar Heat Gain SHGC 0.51   0.28
Visible Transmittance VT 0.45   0.28
ENERGY STAR 7.0 Not Qualified   Northern
Colorado's Water & Efficiency Standards Compliant   Compliant



WARRANTY / CERTIFICATIONS
Product Warranty 10-year limited
Tube Warranty 20-year limited
Florida Product Approval FL6393.7-8
High Velocity Hurricane Zone HVHZ No
IAPMO UES #0199
WDMA Hallmark Certified Yes
Cali Prop 65 Warning Yes



California residents: This product can expose you to Nickel which is known by the State of California to cause cancer, birth defects or other reproductive harm. Click to learn more

Colorado residents: Skylights with U-Factor > 0.50 are intended solely for non-residential applications. Click to learn more
