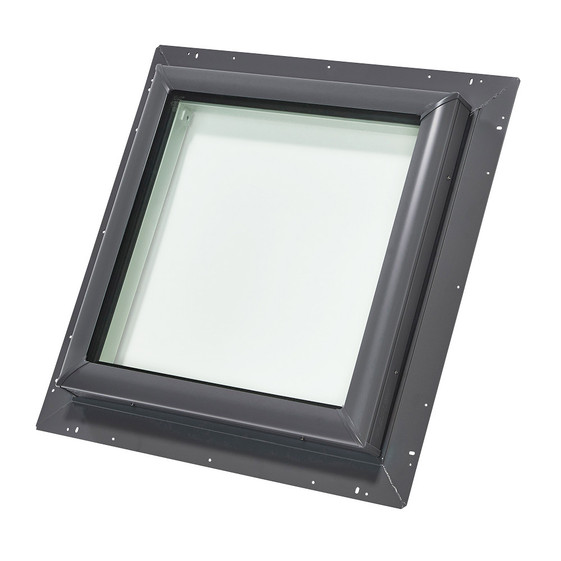

VELUX 46-1/2 in. x 46-1/2 in. Self Flashed Fixed Skylight QPF 4646 with Tempered Low-E3 Glass
- SKU:
- QPF 4646 2005
- UPC:
- 5702325608491
- SHIPPING:
- Free Shipping (Arrives in Approx 11-14 Business Days)
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and get 5% off |
Description
IMPORTANT
This product is discontinued, only available while supplies last- Tempered glass does not meet building codes in California or Minnesota
- Tempered glass does not meet building codes if the skylight is installed out of reach
QPF FIXED SKYLIGHT FEATURES
Streamlined Profile
The streamlined exterior profile of VELUX fixed skylights does not obstruct the roofline.
Built-In Flashing
Features pre-installed metal pan-flashing, welded and painted flashing joints and protective aluminum cladding
Room Darkening Shade
Enjoy the benefits of better light control and improved energy efficiency (Sold separately)
Installation
The cost to install the VELUX fixed skylight will depend on how many skylights you're installing and the type of ceiling in your home. Price ranges outlined on the right side are estimates which include the cost of labor for both exterior and interior finishing work when installing a single new skylight or replacing an old skylight. More precise estimates can be provided by a local roofer or contractor in your area. If you would like a recommendation, please call/email us and we'll be happy to assist.
Specifications
Dimensions
| QPF Size Code | 2222 | 2230 | 2246 | 3030 | 3046 | 4646 |
| Rough Opening WxH (in) | 221⁄2 x 221⁄2 | 221⁄2 x 301⁄2 | 221⁄2 x 461⁄2 | 301⁄2 x 301⁄2 | 301⁄2 x 461⁄2 | 461⁄2 x 461⁄2 |
| Outside Flashing WxH (in) | 295⁄8 x 295⁄8 | 295⁄8 x 375⁄8 | 295⁄8 x 535⁄8 | 375⁄8 x 375⁄8 | 375⁄8 x 535⁄8 | 535⁄8 x 535⁄8 |
Details
| Min. roof pitch | 10 degrees | Max. roof pitch | 60 degrees |
| Frame Material | Pine | Cladding Material | Aluminum |
| UV Protection | 95.2% | Returnable | 30-Day |
| Low-E | Low-E366 | U-Factor | 0.44 |
Warranty / Certifications
| Product Warranty | 10-year limited | Florida Product Approval | 13300 |
| Insulated Glass Warranty | 20-year limited | Texas Dept Insurance | SK03 |
| Energy Star Qualified | All 4 US zones | IAPMO | UES #0199 |
