Velux

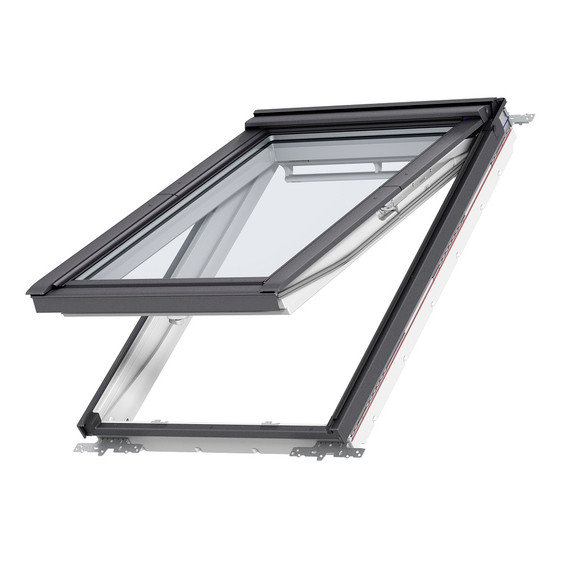

VELUX 22-1/8 in. x 39 in. Top Hinged Roof Window - GPU CK04

SKU:
GPU CK04 0070
UPC:
5702326550300
SHIPPING:
Free Shipping (Estimated Arrival 11-14 Business Days)
  • VELUX Top Hinged Roof Window GPU
  • VELUX Top Hinged Roof Window GPU
  • VELUX 22-1/8 in. x 39 in. Top Hinged Roof Window - GPU CK04
  • VELUX Top Hinged Roof Window GPU
  • VELUX Top Hinged Roof Window GPU
  • VELUX Top Hinged Roof Window GPU
  • VELUX roof window ventilation flap
  • VELUX Top Hinged Roof Window GPU
  • VELUX Top Hinged Roof Window GPU
  • VELUX Top Hinged Roof Window GPU
  • 15-55 degrees roof pitch required
  • How to measure rough opening
$976.00
  • VELUX EDL roof window flashing kit for shingle, shake, or slate roof
  • VELUX EDW Tile Roof Flashing for Roof Window
  • ZWC Side and Bottom Frame Covering for VELUX Roof Window
  • VELUX FHC Manual White Room Darkening Shade for Roof Window
  • ZIL insect screen for VELUX roof window

Description

More natural light and fresh air

Put fresh air at your fingertips with a top hinged VELUX roof window. A top hinged roof window is easy to operate - even with furniture beneath. The innovative top control bar allows you to install the window lower than an equivalent bottom-operated window to get an excellent view while standing and when seated.

We recommend top hinged windows if you have to, or wish to, place your window in a low position, for instance: in rooms with a low ceiling or where you’d like a better view of the surroundings below.

Watch the operation

  • list iconEnjoy panoramic views - while increasing your energy efficiency and natural ventilation
  • list iconConvenient bottom handle for operation
  • list iconIncrease the amount of natural light in your rooms

Benefits of top hinged roof windows


Top Hinged Roof Window
1 2 3 4
1arrow-iconThermoTechnologyTM

Experience a more comfortable home and lower energy bills with VELUX ThermoTechnology™. Innovative use of high performance materials in the window construction provides excellent energy efficiency, insulation and an airtight seal. Look for the ThermoTechnology™ seal for your guarantee of excellent energy efficiency.

2arrow-iconNatural ventilation

Let fresh air into your home even when you are away or sleeping, without having to worry about security or bad weather. Pull the unique top control bar once and you will allow fresh, filtered air to enter through the ventilation flap.

3arrow-iconHow to clean your window

To clean the outer pane, rotate the sash 180 degrees. The sash must be secured in position by sliding the barrel bolt into the bushing at the bottom of the side frame. The air filter can be removed and washed with ordinary household cleaners. Fully rotate and secure the window in cleaning position, then remove the filter from the filter rail.

4arrow-iconBlinds

Complete your VELUX roof window with VELUX accessories. There is a blind for every need. Whether you go for the benefits or just for the looks: VELUX offer a wide range of decorative solutions in colors that fit your style.

Price Range for Single Top Hinged Roof Window Install

With a small investment, you can dramatically transform any room in your home with daylight and fresh air. In the long run, installing roof windows will help you save on your utility bills. Costs vary depending on the number of roof windows and your ceiling type.

View all price rangesright arrow
Price range for Top Hinged Roof window

Roof Window Sizes

GPU Size CodeCK04CK06MK04MK06MK08PK10SK06UK08
Outside frame (W"xH") 2158 x
38 12
2158 x
46 38
3034 x
38 12
3034 x
46 38
3034 x
55
3718 x
63
4478 x
46 38
5234 x
55 116
Rough opening/ Finished frame (W"xH") 2218 x
39
2218 x
46 78
3114 x
39
3114 x
46 78
3114 x
55 12
3758 x
63 12
4538 x
46 78
5314 x
55 12

Excellent energy
efficiency

Experience a more comfortable home and lower energy bills with VELUX ThermoTechnology™. Innovative use of high performance materials in the window construction provides excellent energy efficiency, insulation and an airtight seal. Look for the ThermoTechnology™ seal for your guarantee of excellent energy efficiency.

Natural ventilation – with a closed window

Let fresh air into your home even when you are away or sleeping, without having to worry about security or bad weather. Pull the unique top control bar once and you will allow fresh, filtered air to enter through the ventilation flap.

Enjoy fresh, clean, filtered air

The built-in air filter improves the indoor climate by preventing dust and insects from entering your home. The filter is reusable and easy to clean.

Are you ready to buy?

Specifications

Specifications

Dimensions

Product Depth (in.)
3.75
Rough Opening Width (in.)
22-1/8
Rough Opening Height (in.)
39

Details

Color Family
Gray
Product Weight (lb.)
73 lb
Interior Finish
White
Returnable
30-Day
