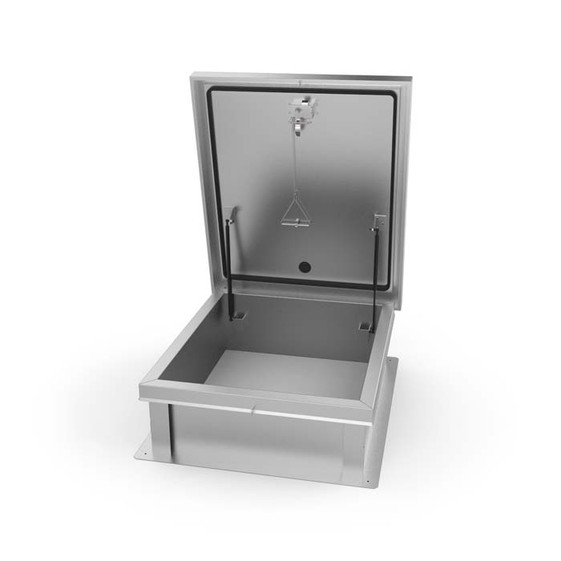

Acudor 30 x 30 Ladder Access Roof Hatch A3838 Aluminum
- SKU:
- A3838
- SHIPPING:
- Free Shipping (Arrives in 5-7 Days)
Description
Acudor Ladder Access Roof Hatch Aluminum
Acudor Ladder Access Roof Hatches are designed to provide convenient, economical access to the roof of a building
RHA Features
- Weather tight construction
- Convenient one-hand operation
- 12" high insulated curb
- Supports 40lbs./sq. ft. live load
RHA Optional Features
- Painted and Anodized finishes
- Polycarbonate domes for daylighting
- Louvered Curbs
- Curb Mounted Units
- Curb pitch corrected for sloped roof
- Higher curb heights for "green roof" applications
RHA Standard Sizes
|
|
CURB ID L&W
|
WEIGHT PER HATCH
|
|
MODEL
|
inches (mm) |
lbs. (kg.)
|
|
A3232
|
24 x 24 (610 x 610) |
60 (27.3)
|
|
A3238
|
24 x 30 (610 x 762)
|
65 (29.4) |
|
A3244
|
24 x 36 (610 x 914)
|
70 (31.8)
|
|
A3838
|
30 x 30 (762 x 762)
|
75 (34.0)
|
|
A3844
|
30 x 36 (762 x 914)
|
85 (38.6)
|
|
A4444
|
36 x 36 (914 x 914)
|
95 (43.2)
|
Specifications
Specifications
|
Cover
|
Double-skin construction (“in box type design”) with 1" cellulose insulation and a continuous EPDM foam weather/draft seal gasket that is attached to the inside of cover to provide a flush, tight fit. Designed to support a live load of 40lbs./sq. ft., the cover is 11 gauge aluminum with a 20 gauge aluminum inside liner.
|
|
Curb
|
11 gauge aluminum with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
|
|
Hinge
|
Heavy duty Aluminum pintle hinges with 3/8" pin |
|
Opening
|
Gas spring operators allow cover to open and close when closing cover.
|
|
Door Latch
|
Self latching, zinc plated outside T handle with stainless steel inside lock and lever assembly. Unit also has inside and outside padlock provisions.
|
|
Finish
|
Mill finish
|
