Velux

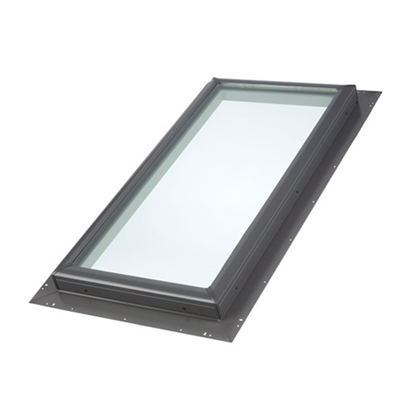

VELUX 30-1/2 in. x 30-1/2 in. Self Flashed Fixed Skylight QPF 3030
- SKU:
- QPF 3030 2004
- UPC:
- 5702325608446
- SHIPPING:
- Free Shipping (Arrives in Approx 3-5 Business Days)
Description
VELUX Fixed Skylights
An economical choice for transforming and visually expanding a room using natural light from above.
Self Flashed Skylights
VELUX QPF models have pre-installed metal pan flashing designed for use with roofing sealant based installation on asphalt shingle roofs. Flashing joints are welded and painted for strength and durability.
FIXED SKYLIGHT FEATURES
Streamlined Profile
The streamlined exterior profile of VELUX fixed skylights does not obstruct the roofline.
Hail Warranty
Laminated glass meets building codes and a Neat® glass coating disperses water evenly for quick evaporation and reduced water spotting
Room Darkening Shade
Add a solar powered room darkening shade and enjoy the benefits of better light control and improved energy efficiency.
Installation
The cost to install the VELUX fixed skylight will depend on how many skylights you're installing and the type of ceiling in your home. Price ranges outlined on the right side are estimates which include the cost of labor for both exterior and interior finishing work when installing a single new skylight or replacing an old skylight. More precise estimates can be provided by a local roofer or contractor in your area. If you would like a recommendation, please call/email us and we'll be happy to assist.
Specifications
Dimensions
| QPF Size Code | 2222 | 2230 | 2246 | 3030 | 3046 | 4646 |
| Rough Opening WxH (in) | 221⁄2 x 221⁄2 | 221⁄2 x 301⁄2 | 221⁄2 x 461⁄2 | 301⁄2 x 301⁄2 | 301⁄2 x 461⁄2 | 461⁄2 x 461⁄2 |
| Outside Flashing WxH (in) | 295⁄8 x 295⁄8 | 295⁄8 x 375⁄8 | 295⁄8 x 535⁄8 | 375⁄8 x 375⁄8 | 375⁄8 x 535⁄8 | 535⁄8 x 535⁄8 |
Details
| Min. roof pitch | 10 degrees | Max. roof pitch | 60 degrees |
| Color | Gray | Cladding Material | Aluminum |
| Flashing Included | Yes | Returnable | 45-Day |
| Frame Material | Pine | Severe weather ready | Yes |
| Low-E | Yes | U-Factor | 0.44 |
Warranty / Certifications
| Product Warranty | 10-year limited | Florida Product Approval | 13300 |
| Insulated Glass Warranty | 20-year limited | Texas Dept Insurance | SK03 |
| Hail Warranty | Yes | IAPMO | UES #0199 |
| Energy Star Qualified | All 4 US zones |
