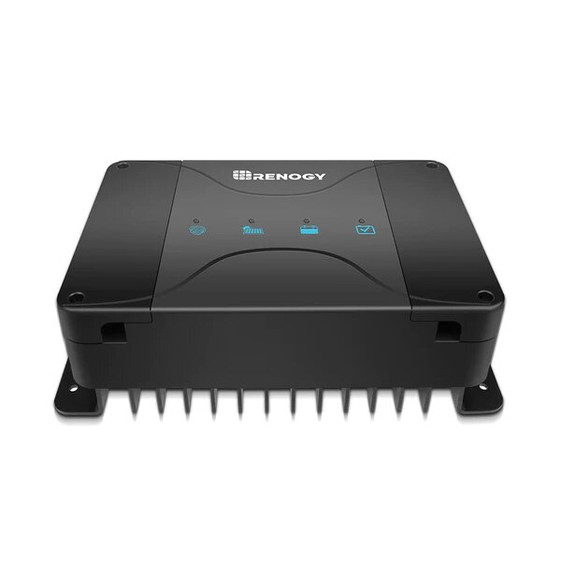

Renogy 12V DC to DC On-Board Battery Charger

Designed to give you options, the Renogy 30A Dual-Input DC-to-DC MPPT On-Board Battery Charger can charge a service battery in two different ways. The multi-stage charger can utilize connected solar panels or an alternator linked to a starting battery. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! With multi-stage charging and multi-chemistry functionality, Renogy's DC-to-DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. Now you can unlock monitoring and control features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App (available in both the App Store and Google Play).

Key Features

Designed to charge service batteries from two DC inputs—solar panels and alternator .
Built-in Maximum Power Point Tracking (MPPT) to maximize the solar power.
3-phase charging profile (Bulk, Boost, and Float) ensures your service battery will be accurately charged at the correct voltage levels to 100%.
Built-in Voltage Sensitive Relay (VSR) for easy setup with traditional alternators.
Compatible with smart alternators (with variable output voltage).
Trickle charges the starting battery via solar panels if the service battery is fully charged.
Isolation of the starting battery and the service battery.
Temperature and voltage compensation features prolong battery life and improve system performance.
Smart Protection Features: battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection.
Compatible with multiple battery types: AGM, GEL, Flooded, and Lithium.
Compact with a sturdy design, it was built tough for all conditions.
Bluetooth Monitoring Ready! Exclusively available with the BT-2 Bluetooth Module accessory and Renogy DC Home App available on the IOS and Google Play Stores.

Packages Include

Battery Charger
Battery Temperature Sensor
IGN Signal Wire
RS485 Communication Cable

Specifications

Specifications
System Voltage : 12VDC	Battery Voltage Range : 9-16VDC
Maximum Charging Current : 30A	Battery Type : SLA, GEL, FLD, LI, USER
Backup Battery Charging Mode : MPPT	Charging Efficiency : Up to 97%
Max. Solar Input Voltage : 25V	Maximum Solar Input Power : 400W
Alternator Input Voltage : Traditional Alternator: 13.2-16VDC Smart Alternator (Euro 6): 12-16VDC	Maximum Alternator Input Power : 400W
Self-consumption : 60mA	Operating Temperature Range : -22°F~149°F / -5°C~65°C
Dimensions : 9.2 x 5.8 x 3.0 in / 234 x 146 x 77 mm	Weight : 3.13 lbs / 1.42 kg
