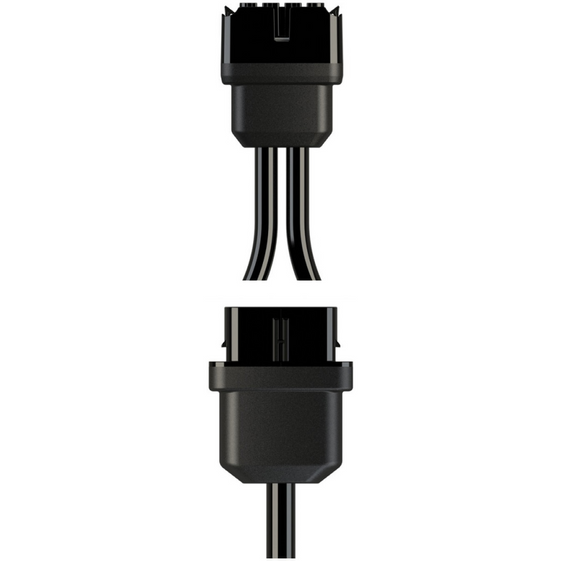

Name: Enphase EN-QD-12-13-120-CUT-01 MUST BE SOLD IN MULTIPLES OF 3 CONNECTORS - Cut Cable Lengths QD cable (4x12AWG) 60-72 cell
Brand: Enphase
SKU: EN-QD-12-13-120-CUT-01
Price: 31.99 USD
Availability: InStock

Enphase EN-QD-12-13-120-CUT-01 MUST BE SOLD IN MULTIPLES OF 3 CONNECTORS - Cut Cable Lengths QD cable (4x12AWG) 60-72 cell

SKU:

EN-QD-12-13-120-CUT-01

Description

Description

MUST be ordered in multiples of full box qty: 3

MUST BE SOLD IN MULTIPLES OF 3 CONNECTORS. WARNING: Cut cable lengths may include 2 sections of cable with a minimum of 12 micro connectors on the shorter cable length. Use of field wireable connectors and/or junction box may be required to follow design guidelines. · QD cable (4x12AWG) 60-72 cell. · Connector spacing is 1.7m (5.6ft). · 1.3m (4.3ft) max spacing between microinverters. · 4-pin male connectors plug directly into the IQ8 Commercial Microinverters. Connector count varies based in cut length and must be multiples of 3. · Center tap every 6 connectors, first center tap will be after 3 or 6 connectors and cut will start at connector 1 or 4.

The Enphase QD Cable and accessories are integral parts of the IQ8 Commercial Microinverter based PV system for grid-tied, three-phase 208 V PV applications.

The QD Cable works with the Enphase IQ8 Commercial Microinverter and provides self-phase balancing and neutral sensing for phase loss protection.

Features

Reliable

Neutral sensing for phase loss protection
Locking-type connectors
Rated for outdoor, wet environments, sunlight resistance, and oil resistance

Easy

Self-phase balancing
Lightweight and simple for fast installation
Modularly expandable
Reduction in balance-of-system costs and installation time
Phase ID marked on QD Cable connectors for easy identification (C1: L1-L2, C2: L2-L3, and C3: L3-L1 sequentially)
Separate center feeding connector in all AC branch circuit cabling SKUs for maintaining <1% voltage rise with easy plug-and-play installations

Field Wireable QD Connectors
