Acudor

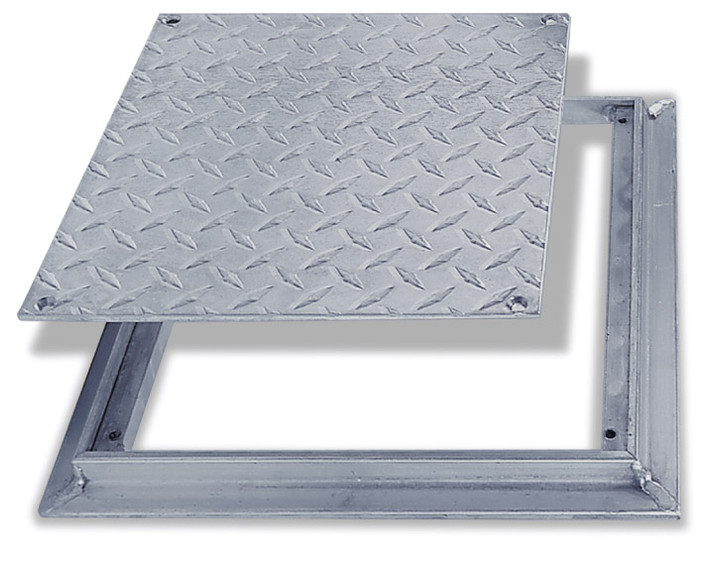

Acudor 24 x 24 FD-8060 Floor Door
- SKU:
- FD-8060 24 x 24
- SHIPPING:
- FREE - Usually arrives in 7-10 days
Description
Acudor FD-8060 Floor Door
Acudor FD-8060 Floor Door are designed for interior and exterior applications that require an access opening.
Product Features
- Flush Diamond Plate door panel
- Door panel removable via screws
FD-8060 Standard Sizes
|
NOMINAL DOOR SIZE W & H
|
WEIGHT PER DOOR
|
||
|
Inches
|
mm |
lbs.
|
kg.
|
|
8 x 8
|
203 x 203 | 4 |
1.8
|
|
12 x 12
|
305 x 305 | 6 |
2.7
|
|
18 x 18
|
457 x 457 |
12
|
5.5 |
|
24 x 24
|
610 x 610 | 24 |
10.9
|
Specifications
Specifications
|
Material
|
Aluminum
|
|
Door
|
1/4" aluminum diamond plate reinforced for the live load of 150 pounds/per sq. ft.
|
| Frame | 1" x 1" aluminum angle designed to be cast into concrete |
|
Standard Latch
|
Door panel is secured to frame with 1/4" flat head screws
|
|
Finish
|
Mill finish
|
