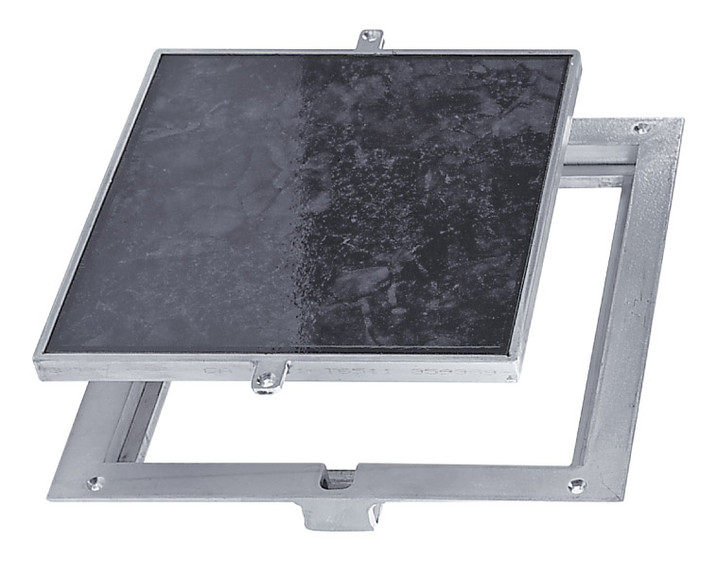

Acudor 18 x 18 FT-8080 Floor Door
- SKU:
- FT-8080 18 x 18
- SHIPPING:
- FREE - Usually arrives in 7-10 days
Description
Acudor FT-8080 Floor Door
Acudor FT-8080 Floor Door are designed for interior and exterior applications that require an access opening that will blend in with the surrounding floor material.
Product Features
- Recessed 1/8" to accommodate carpeting and vinyl tile.
- To keep the floor material from cracking or chipping within the door panel, the securing screws are located in the flange of the mounting frame
FT-8080 Standard Sizes
|
NOMINAL DOOR SIZE W & H
|
WEIGHT PER DOOR
|
||
|
Inches
|
mm |
lbs.
|
kg.
|
|
8 x 8
|
203 x 203 | 6 |
2.7
|
|
12 x 12
|
305 x 305 | 9 |
4.1
|
|
18 x 18
|
457 x 457 |
18
|
8.2 |
|
24 x 24
|
610 x 610 | 36 |
16.3
|
Specifications
Specifications
|
Material
|
Aluminum
|
|
Door
|
1/4" smooth aluminum plate reinforced for live load of 150 pounds/sq. ft., recessed 1/8" for carpet//vinyl tile
|
| Frame | 1-1/2" x 1-1/4" aluminum angle with mounting holes in the top flange |
|
Standard Latch
|
Door panel is secured to frame with 1/4" x 1" flat head screws
|
|
Finish
|
Mill finish
|
