Acudor

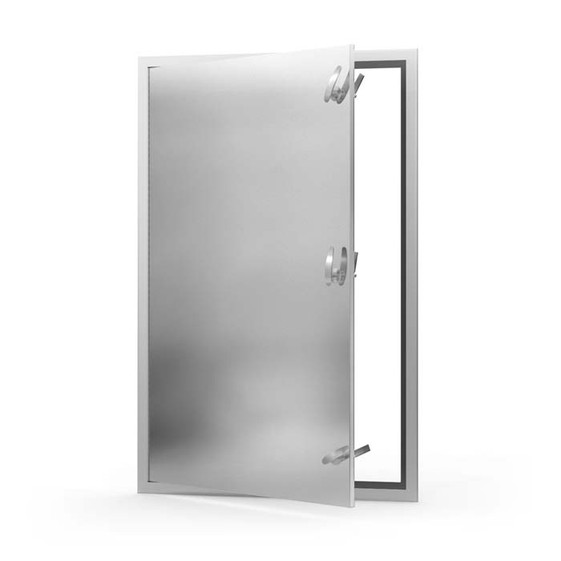

Acudor 24x72 WD-8000 Galvanized Steel Walk Through Access Door
- SKU:
- WD-8000 24x72
- SHIPPING:
- FREE - Usually arrives in 7-10 days
Description
Acudor WD-8000 Duct Door
Application
- Designed to provide convenient walk through access to duct work interiors and air handling units
- Low to medium pressure systems and plenums
Product Features
- Heavy duty construction, along with a continuous hinge and compression handles
Optional Features
- Removable Door Panel / Vision Panel / High Pressure Units / Key Operated Handles
WD-8000 Standard Sizes
|
NOMINAL DOOR SIZE W & H
|
WEIGHT PER DOOR
|
||
|
Inches
|
mm |
lbs.
|
kg.
|
|
24 x 36
|
610 x 914 | 52.8 |
24
|
|
24 x 48
|
610 x 1219 | 77.0 |
35
|
| 24 x 60 | 610 x 1524 | 97.0 | 44 |
| 24 x 72 | 610 x 1829 | 114.4 | 52 |
| 30 x 36 | 762 x 914 | 70.4 | 32 |
| 30 x 48 | 762 x 1219 | 95.0 | 43 |
| 30 x 60 | 762 x 1524 | 119.0 | 54 |
| 30 x 72 | 762 x 1829 | 143.0 | 65 |
Specifications
Specifications
Specifications
|
Door / Door Frame
|
22 gauge galvanized steel, double panel frame is 1 15/16” wide x 1 1/2” deep extruded aluminum with mitred corners |
|
Hinge
|
Continuous steel piano hinge-opens 180o
|
| Insulation | Door panel filled with 1” thick fibreglass insulation - 4 R value |
|
Gasket
|
1/8” thick x 1/2” wide closed cell neoprene gasketing between door and frame
|
|
Standard Latch
|
Dual acting compression handles-operable from both sides. Units 48” high and under to have 2 handles. Units over 48” high to have 3 handles
|
|
Finish
|
Mill finish
|
